Model Description

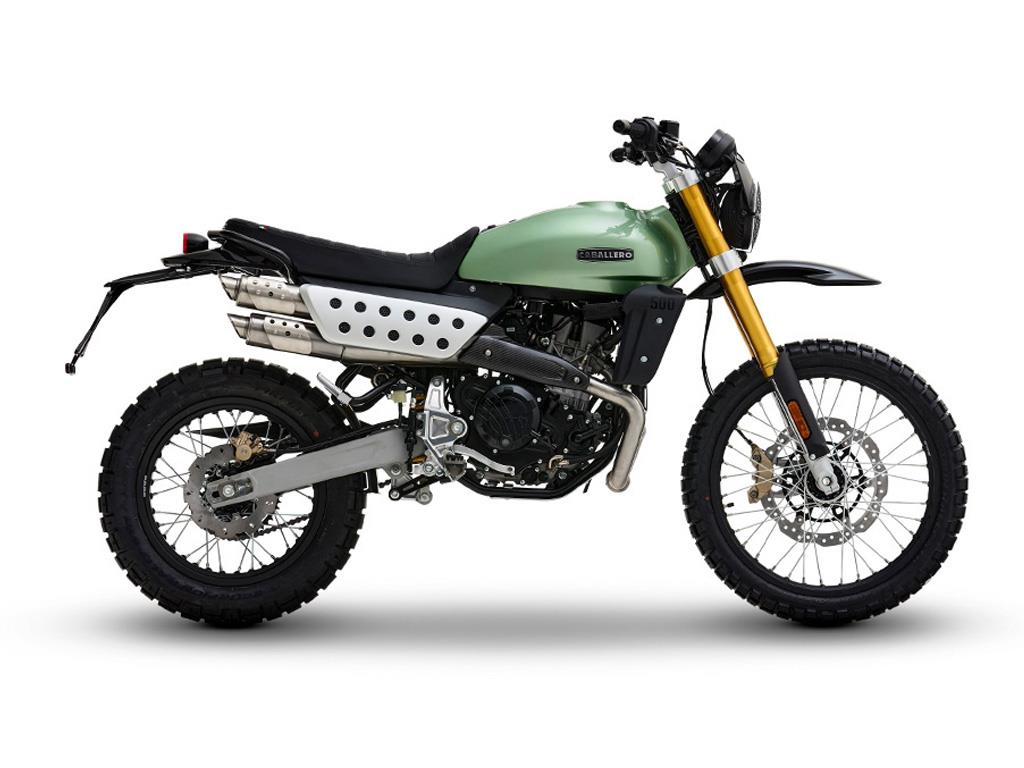

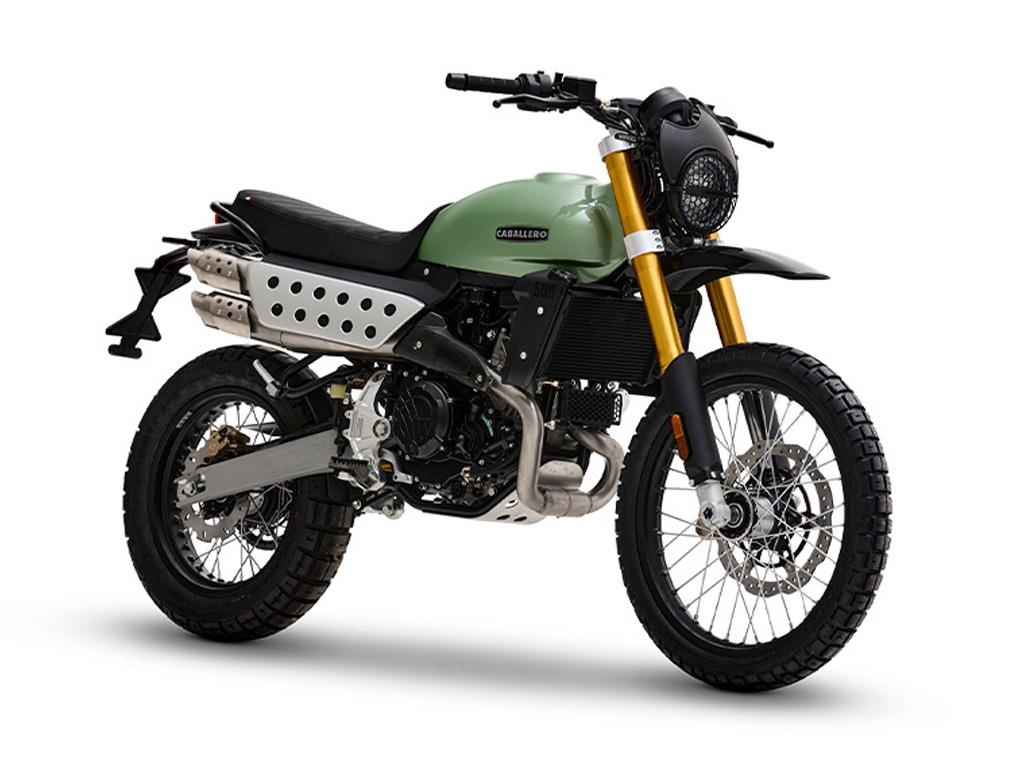

The Caballero 500 Rally is designed for those who appreciate aesthetics but have a strong adventurous spirit.
Its off-road setup — featuring 43 mm adjustable suspension with increased travel, high-mounted front fender, variable-section aluminum alloy swingarm, and progressive linkage — makes it the perfect companion for thrill-seekers looking for intense emotions during their adventures. The standout feature of the Rally version is the 21″ front wheel, which ensures superior off-road performance.

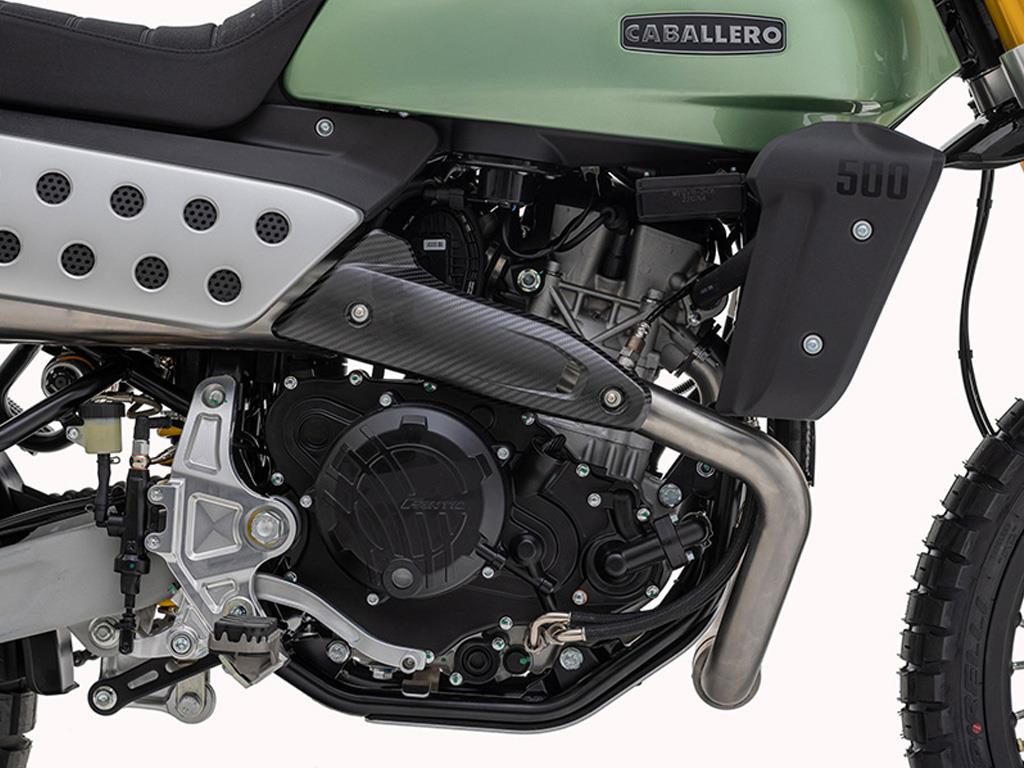

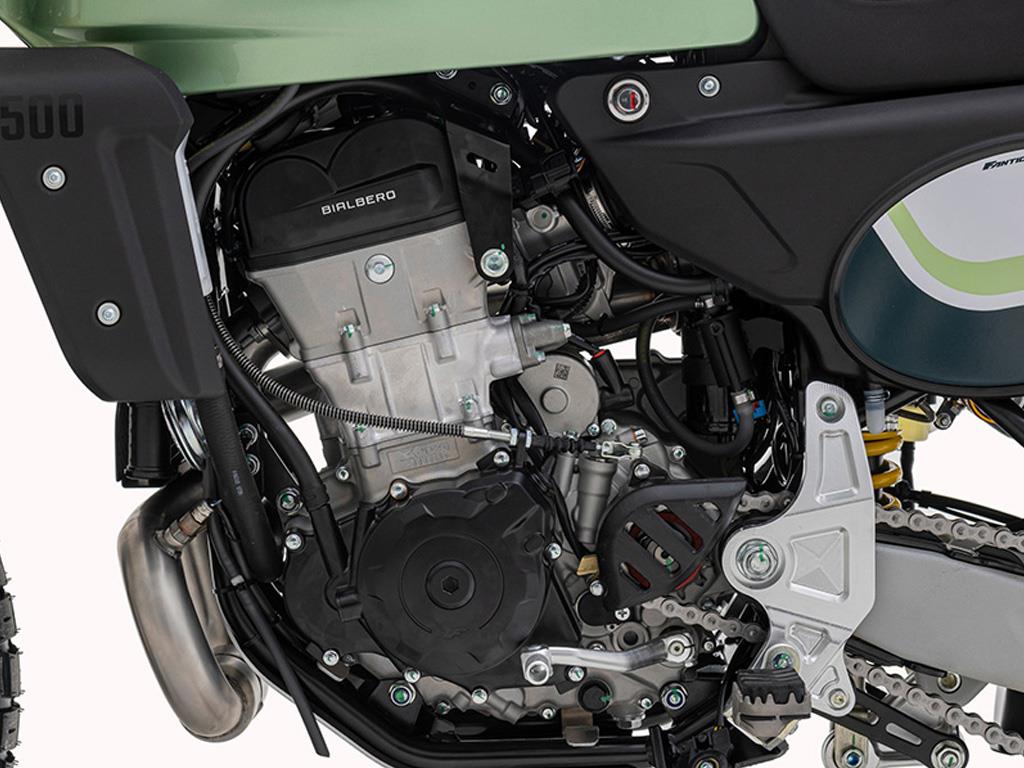

The Caballero 500 Rally is equipped with a new 460cc DOHC single-cylinder engine, developed and produced by Motori Minarelli — an Italian heart that delivers outstanding performance and an exciting ride, built to tackle any off-road challenge with power and reliability. An engine that embodies the passion and excellence of Italian motorcycling tradition.
With the Rally version, your motorcycle adventure dreams are closer than ever. This bike represents the most off-road-oriented version of the Caballero family, designed for true lovers of epic two-wheeled journeys and exploration of distant lands.
A key element of its design is the long-travel suspension, offering 200 mm of travel on both the front and rear wheels. The new model stands out for a series of off-road enhancements, including a new rear spring with preload optimized for off-road use, an improved hydraulic fork, a more refined reed valve system, and dedicated off-road lighting.
A motorcycle built for those who seek top performance on any terrain.

Model Specification


  • Engine

    Engine

    Single-cylinder, 4-stroke, liquid-cooled, 4-valve DOHC

    Displacement

    463 cc

    Carburetor

    Ignition

    Starter

    Electric

  • Frame

    Frame

    Steel CrMo single-beam

    Handlebar

  • Suspension

    Swingarm

    Cast aluminum alloy, variable section with progressive linkage

    Front Suspension

    Upside-down ø43mm fork, fully adjustable in compression, rebound, and preload

    Rear Suspension

    Monoshock with separate piggy-back, fully adjustable in compression, rebound, and preload

  • Wheels

    Front Tyre

    Pirelli Scorpion Rally STR 90/90-21

    Rear Tyre

    Pirelli Scorpion Rally STR 140/80-17

  • Brakes

    Front Brake

    Floating front disc ø320mm

    Rear Brake

    Rear disc ø230mm

  • Dimensions

    Seat Height

    860mm

    Wheelbase

    1455 mm

    Weight

    150 kg dry
