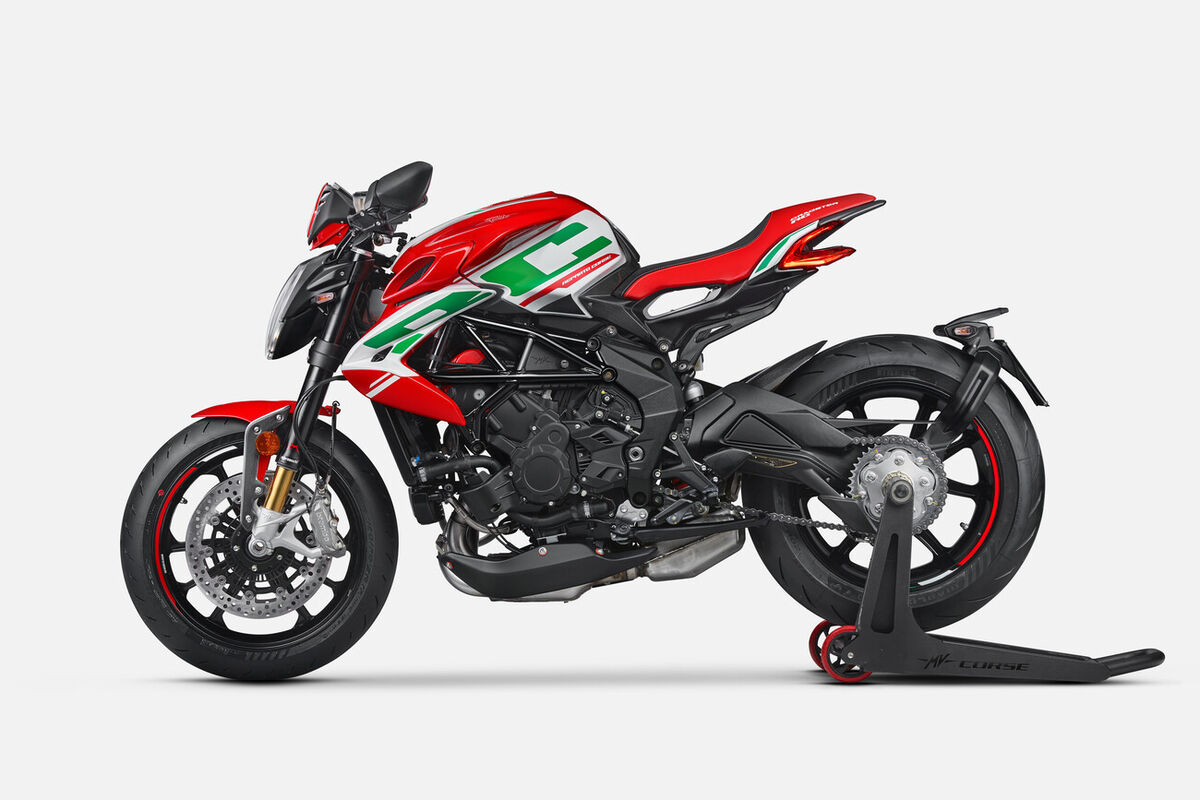

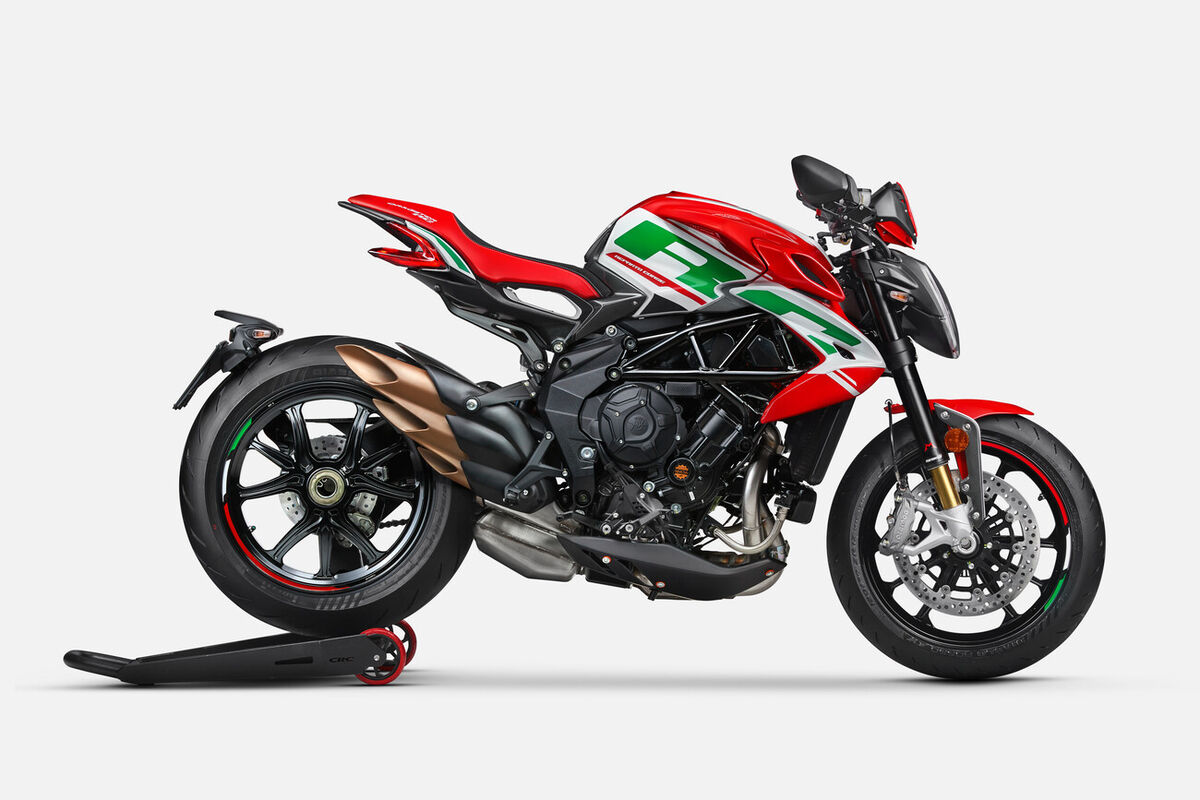

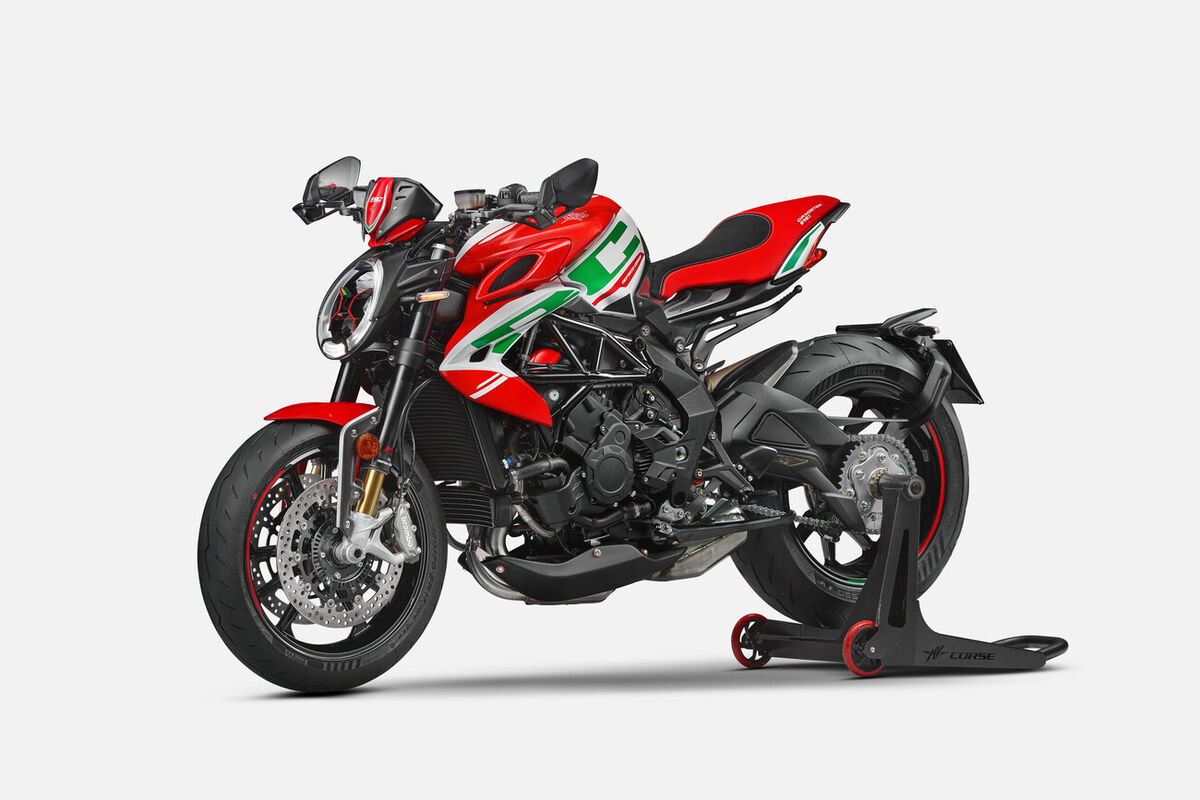

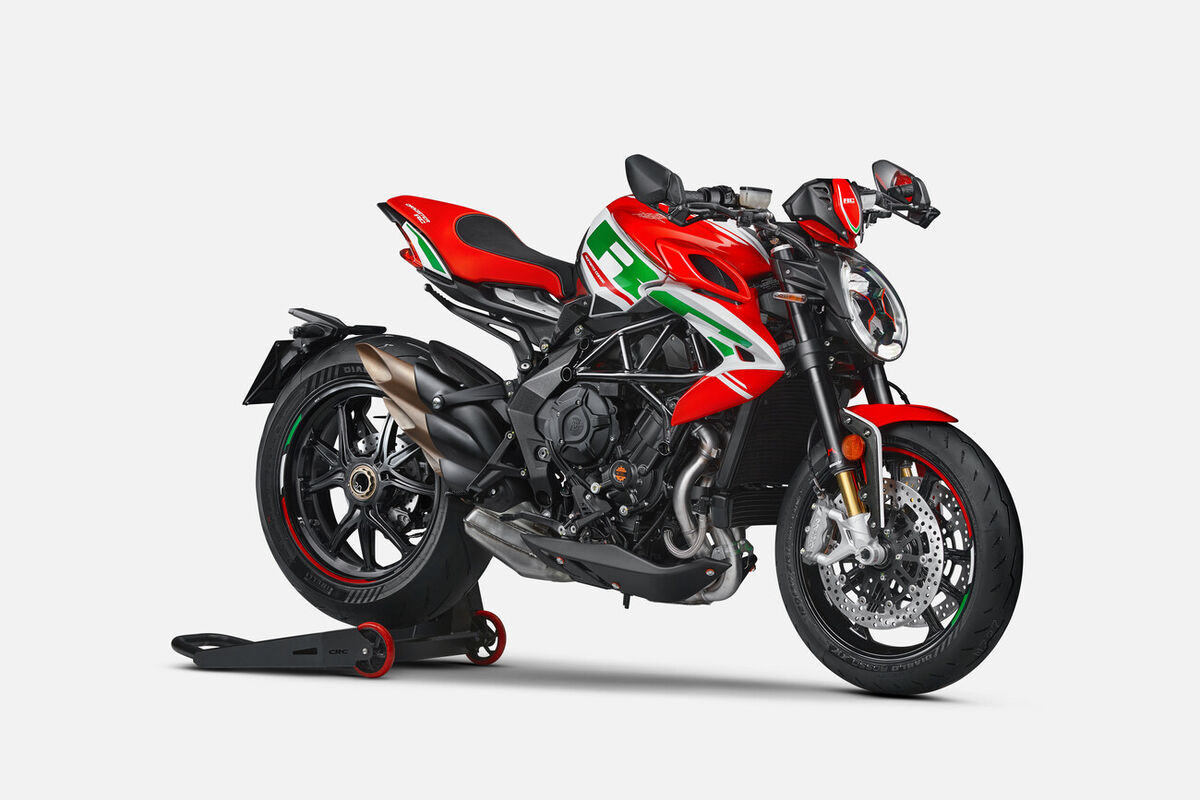

Dragster RC SCS
£22,400.00
Model Description
DESIGN. NO COMPROMISE

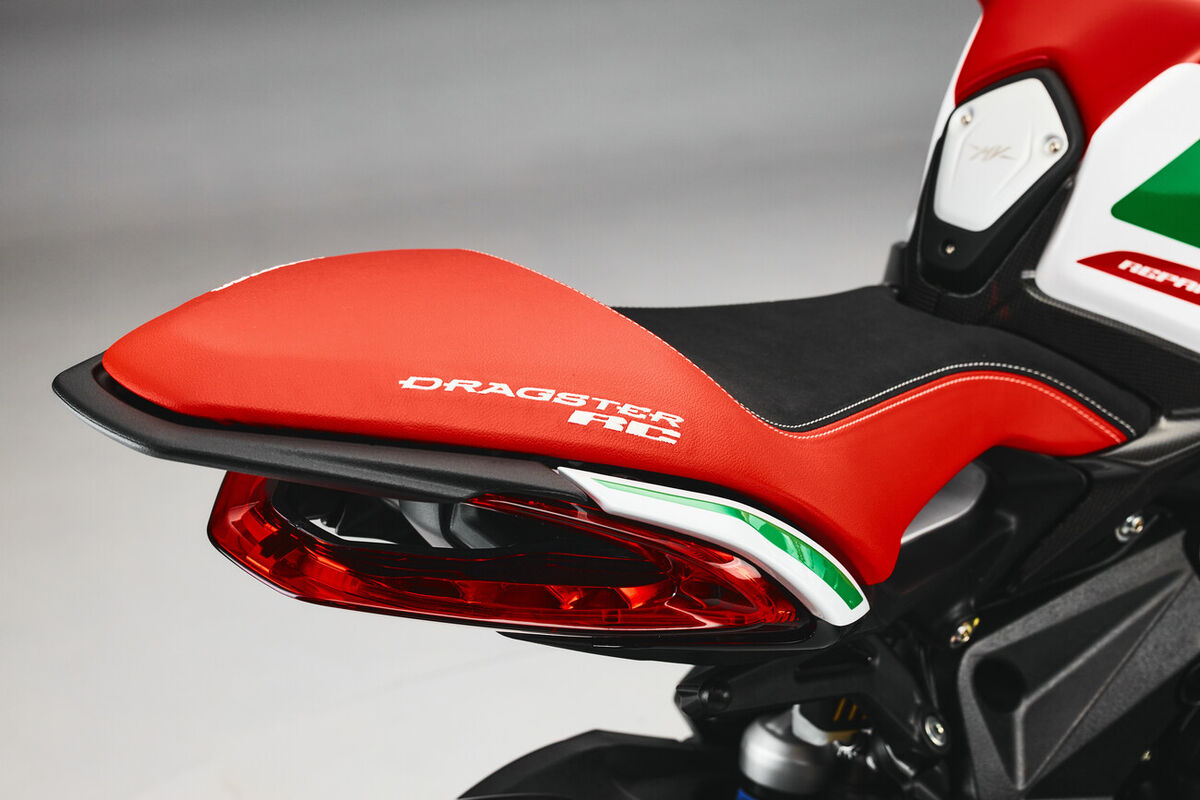

Unimaginably compact, it is designed for blistering acceleration, with a front end that skims the asphalt and the dominating sound of the in-line three-cylinder engine. Its particularly short tail section is unmistakable as it darts away towards the horizon.
PURE MV AGUSTA SOUND
The in-line three-cylinder engine with counter-rotating crankshaft has already gone down in MV Agusta history thanks to its cutting-edge technical solutions. Euro 5 certified, it stands out for its maniacal reduction in friction, its extraordinary compactness and its particularly low weight, all of which make for exhilarating performance.
Model Specification
-
Engine
Type
Three cylinder, 4 stroke, 12 valve
Engine
Timing
“D.O.H.C” with mechanical chain tensioner and DLC tappet
Displacement (cc)
798 cm3 (48.68 cu. in.)
Compression Ratio
13.3:1
Starting
Electric
Max Power
103 kW (140 hp) at 12.300 r.p.m. 110 kW (150 hp) at 12.800 r.p.m**.
Max Torque
87 Nm (8.87 kgm) at 10.100 r.p.m.
Engine Management
Integrated ignition
-
Dimensions
Bore x Stroke
79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Wheelbase
1400 mm (55.12 in.)
Length
2035 mm (80.12 in.)
Width
935 mm (36.81 in.)
SeatHeight
485 mm (33.27 in.)
Ground Clearance
135 mm (5.31 in.)
Trail
103.5 mm (4.07 in.)
Dry Weight
168 kg (370.38 lbs.) - 160 kg (352.74 lbs.)**
-
Performance
Cooling
Cooling with separeted liquid and oil radiators
Clutch

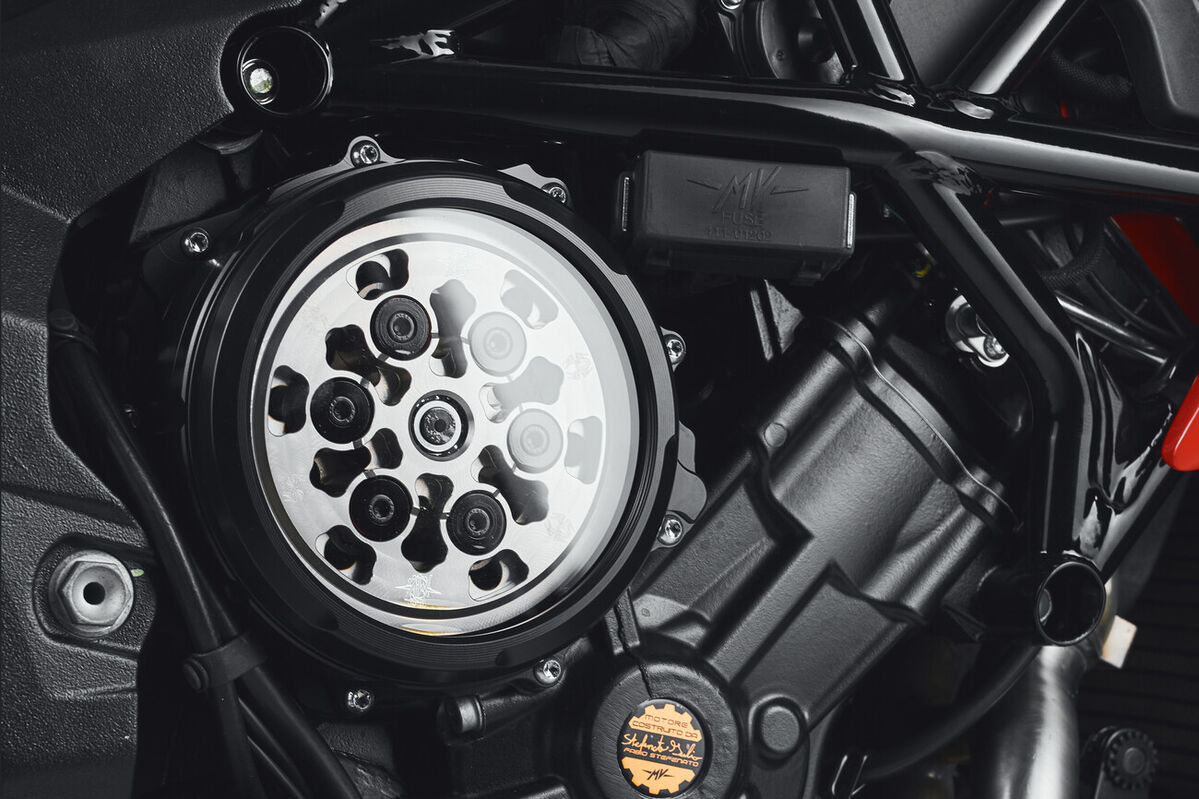

S.C.S. 2.0 (Smart Clutch System) Radius CX automatic clutch with hydraulic clutch actuation, wet multi-disc
Max Speed
244.0 km/h (151.6 mph)
-
Transmission
Gearbox
Primary Drive
22/41
-
Frame
Tank Capacity
16.5 l (4.36 U.S. gal.)
Frame Type
ALS Steel tubular trellis
Rear Swing Arm
Aluminium alloy
-
Suspension
Front Suspension
Marzocchi “UPSIDE DOWN” telescopic hydraulic fork in DLC treated aluminium, with anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment
Rear Suspension
Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
-
Brakes
Front Brakes
Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange
Rear Brakes
Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
-
Wheels
Front Wheels
Forged aluminium alloy 3.50” x 17”
Rear Wheels
Forged aluminium alloy 6.00” x 17”
Front Tyres
120/70 - ZR 17 M/C (58 W)

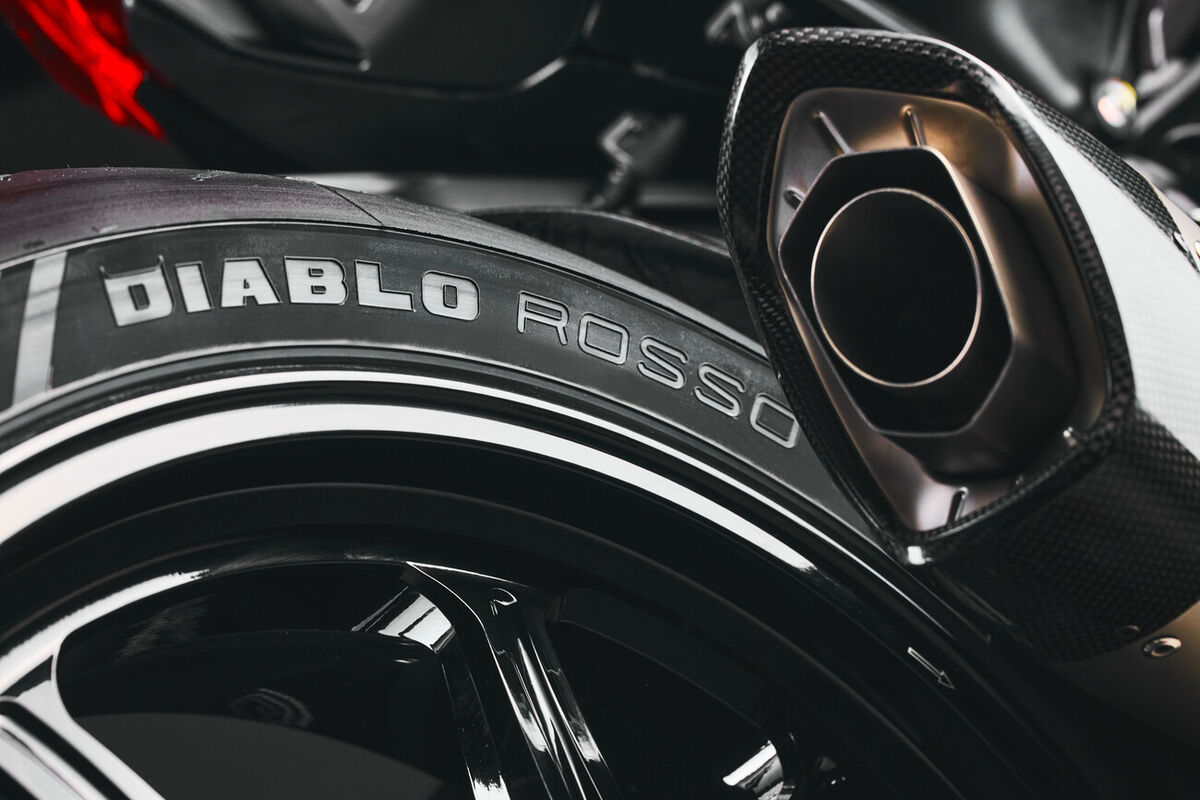

Rear Tyres
200/55 - ZR 17 M/C (78 W)
5 based on votes
MV Agusta
£
22400.00
Available in Stock
