Model Description
DESIGN. RED, THE PASSION OF DESIGN

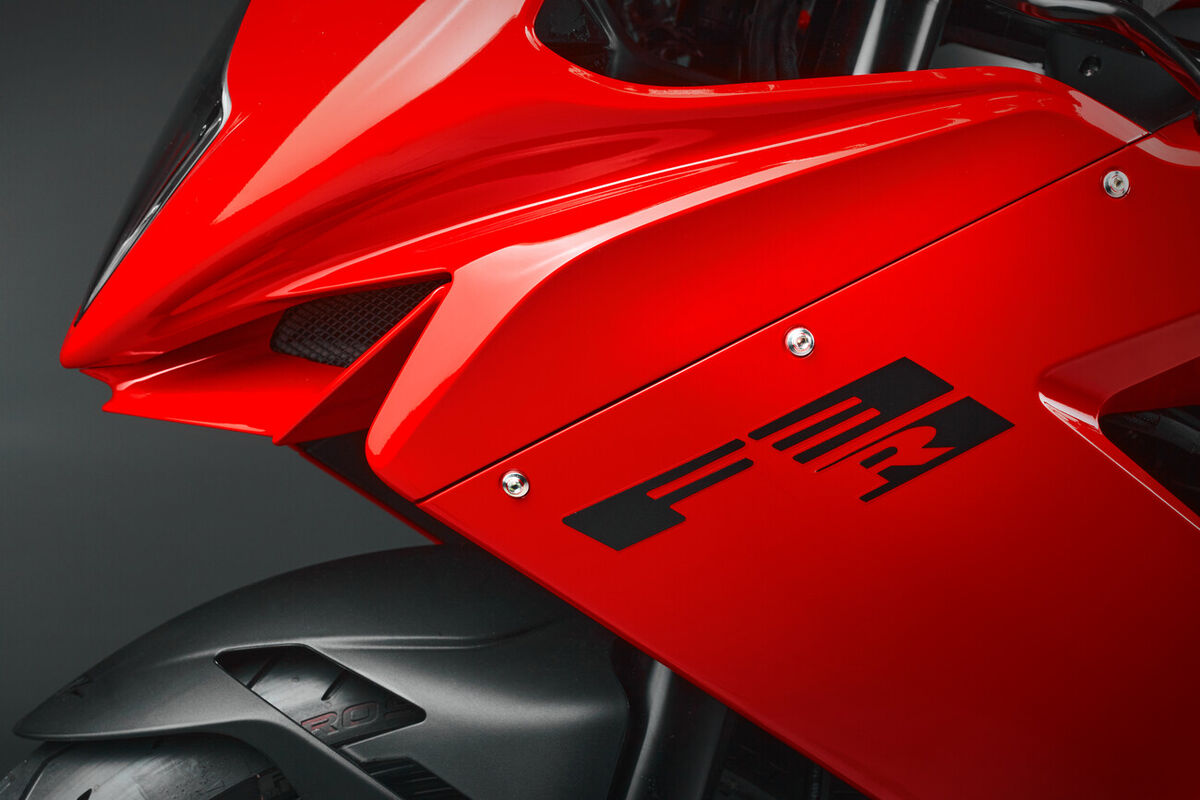

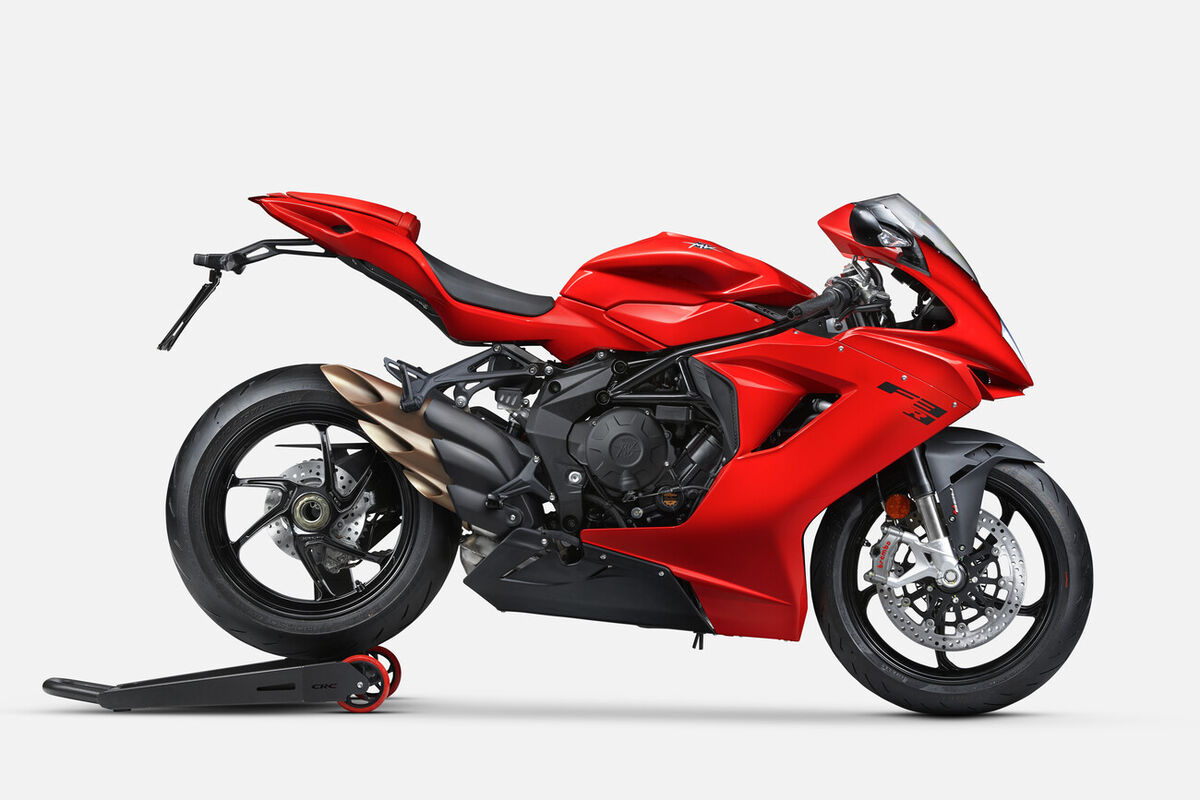

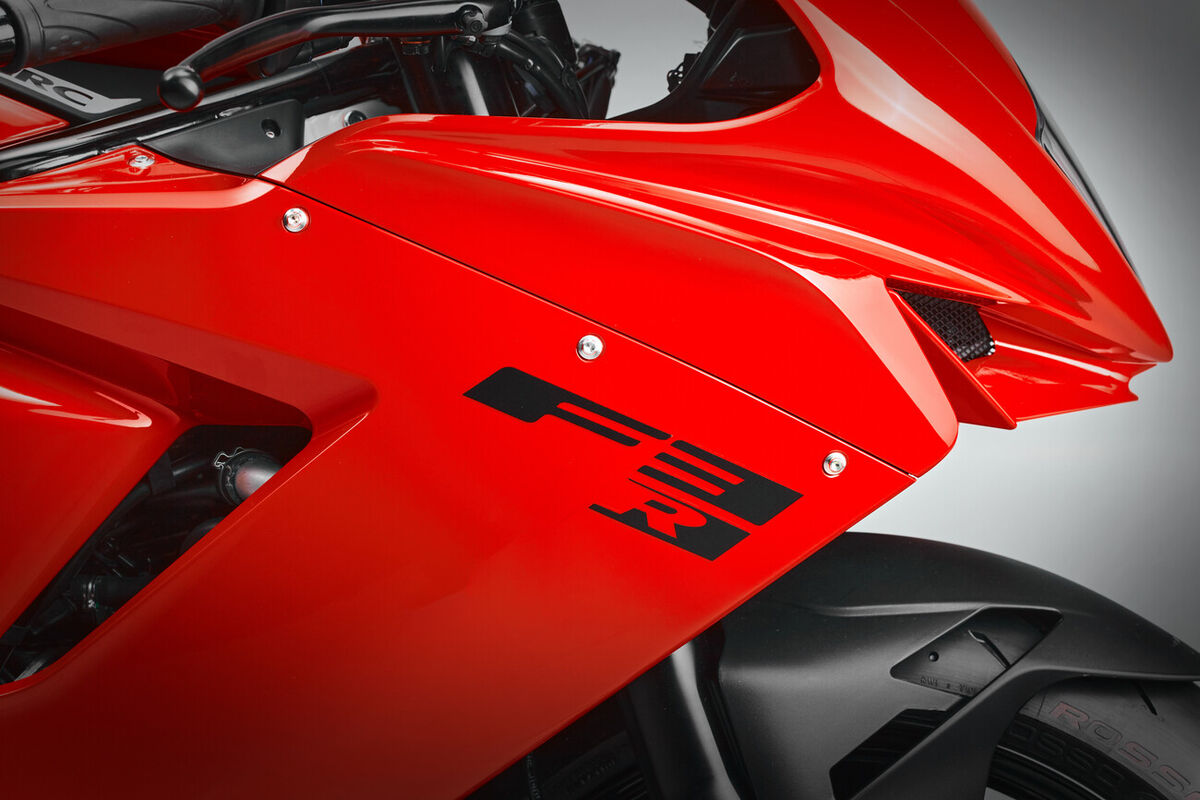

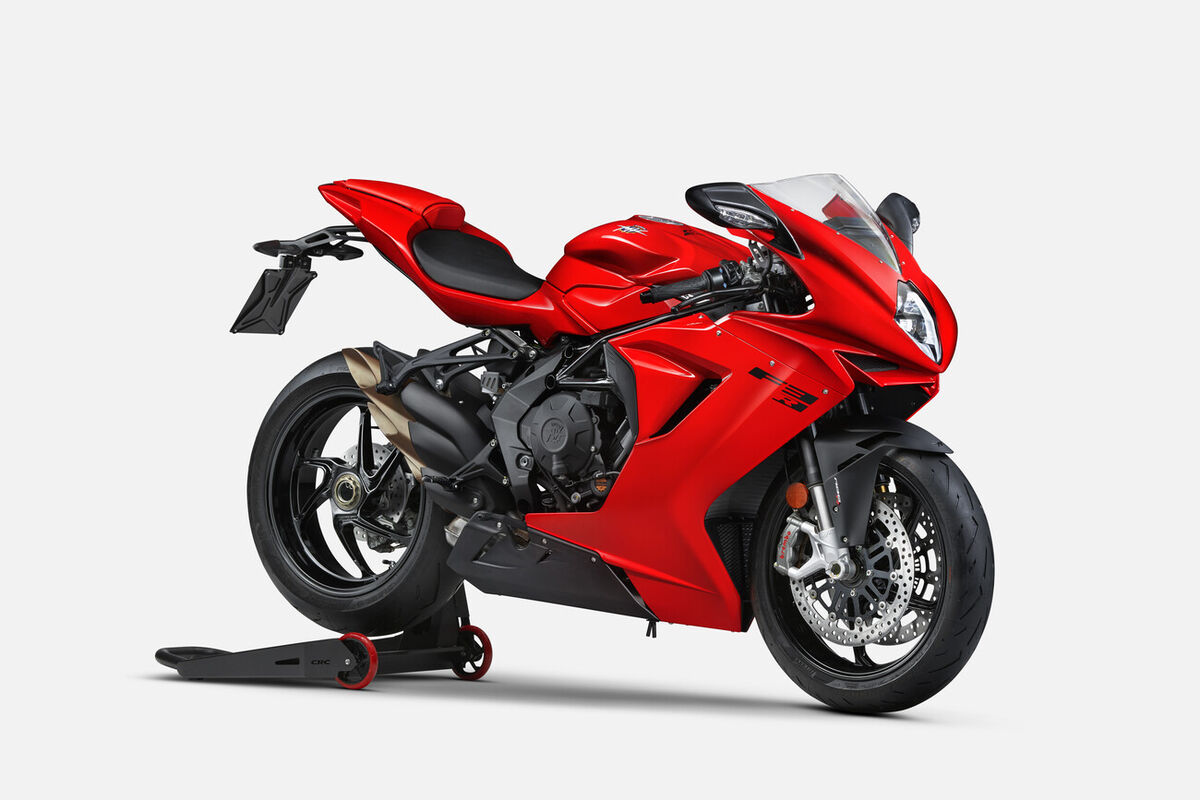

The R takes all the characteristics of the F3 to an extreme, with lines designed for performance and projected into the future. Style and performance find their ultimate expression in the contrast between the red fairing and all black components.
PURE MV AGUSTA SOUND

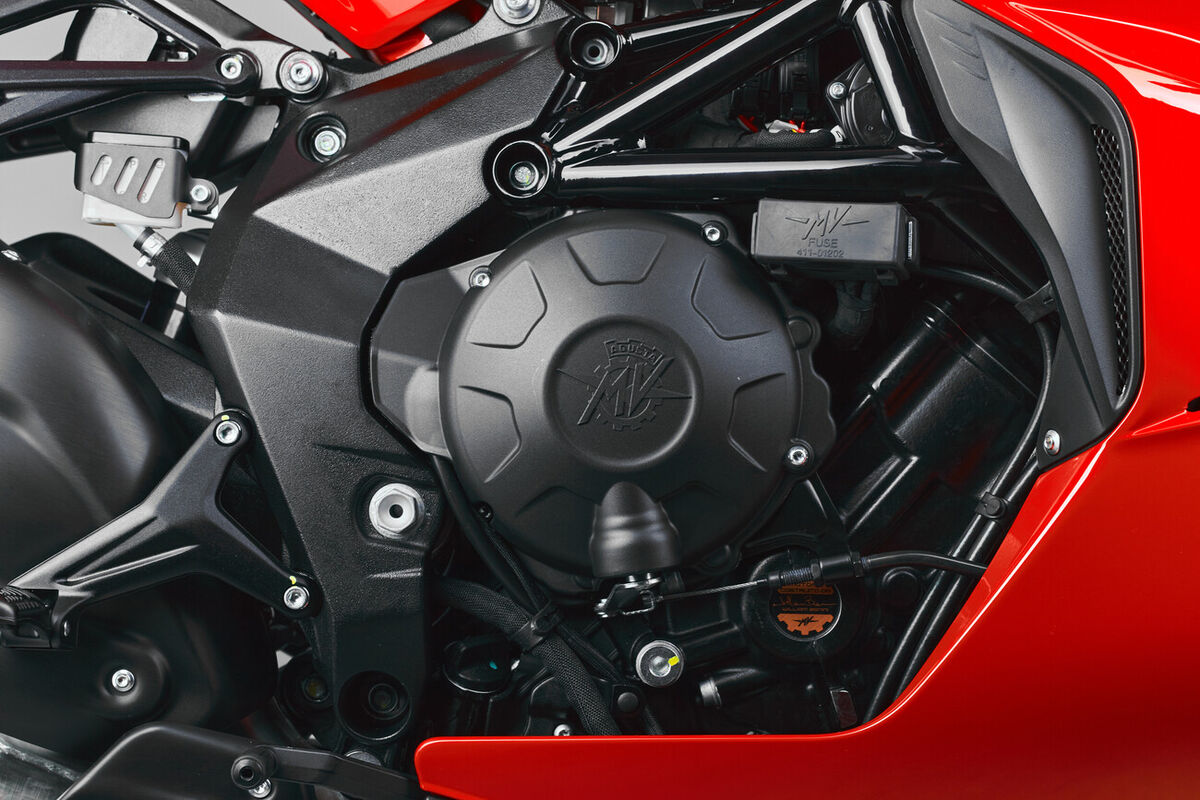

At the heart of the F3 project is the in-line three-cylinder engine, a unique example of race-derived technology that is easy to manage, on both road and track. The extreme versatility of the engine, rich in torque at all speeds, is one of the secrets of this unit complete with counter-rotating crankshaft and removable gearbox. The intake and exhaust valves are in titanium.
Model Specification
-
Engine
Type
Three cylinders, 4 stroke, 12 valves
Engine
Timing
“D.O.H.C” with mechanical chain tensioner and DLC tappet
Displacement (cc)
798 cm3 (48.7 cu. in.)
Compression Ratio
13.3:1
Starting
Electric
Max Power
108 kW (147 hp) at 13.000 rpm
Max Torque
88 Nm (8.98 kgm) at 10.100 rpm
Engine Management
Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor Nemo 2.1, throttle body bore 50 mm diameters full ride by wire Mikuni, pencil-coil with ion- sensing technology,
-
Dimensions
Bore x Stroke
79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Wheelbase
1.380 mm (54.33 in.)
Length
2.030 mm (79.92 in.)
Width
730 mm (28.74 in.)
SeatHeight
830 mm (32.68 in.)
Ground Clearance
120 mm (4.72 in.)
Trail
99 mm (3.89 in.)
Dry Weight
173 kg (381.4 lbs.)
-
Performance
Cooling
Cooling with separated liquid and oil radiators
Clutch
Wet, multi-disc slipper clutch
Max Speed
16,5 l (4.36 U.S. gal.)
-
Transmission
Gearbox
Primary Drive
22/41
-
Frame
Tank Capacity
16,5 l (4.36 U.S. gal.)

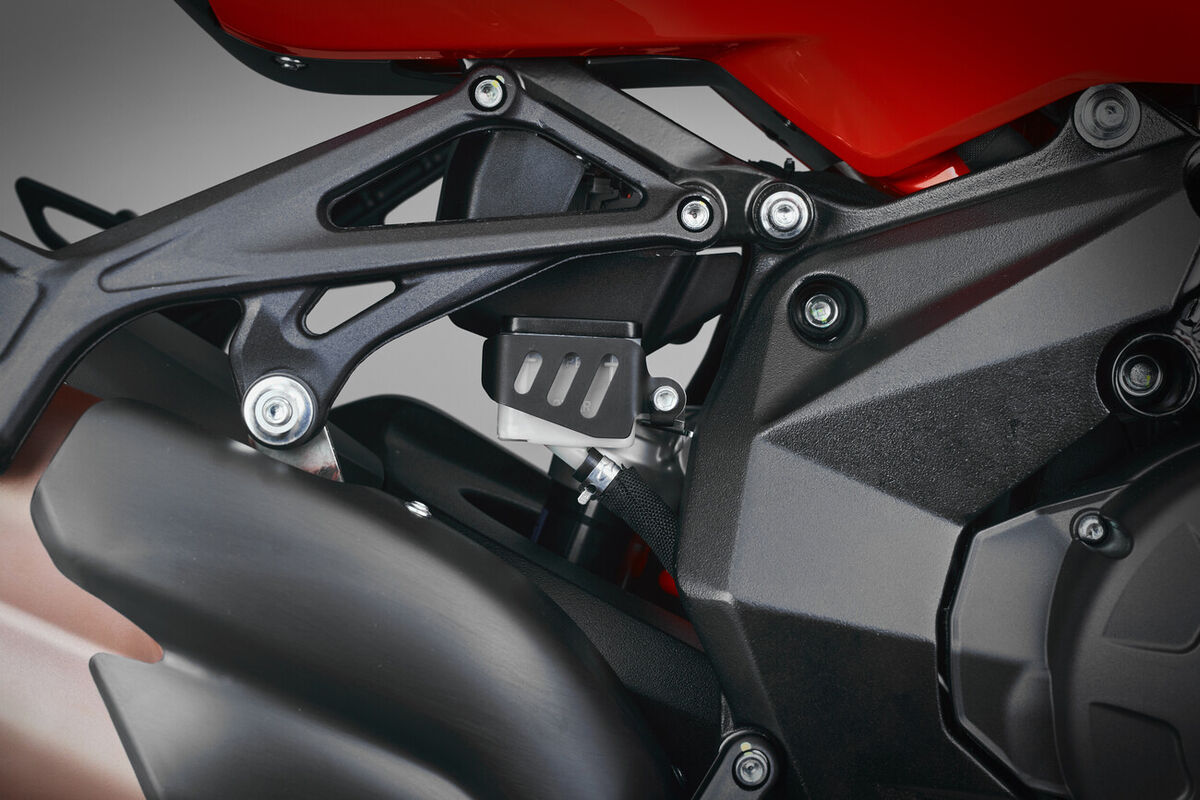

Frame Type
ALS Steel tubular trellis
Rear Swing Arm
Aluminium alloy
-
Suspension
Front Suspension
Marzocchi “UPSIDE DOWN” telescopic hydraulic fork, with rebound-compression damping and spring preload external and separate adjustment
Rear Suspension

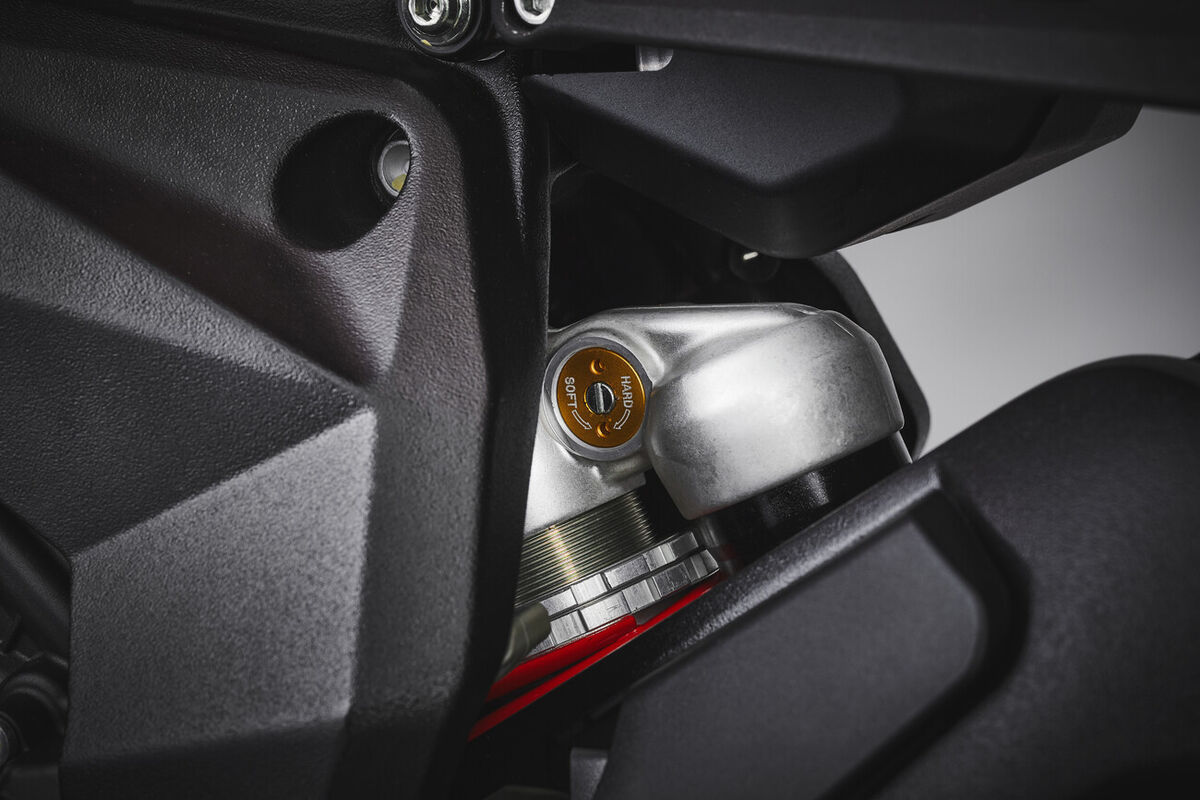

Progressive, Sachs single shock absorber with rebound and compression damping and spring preload adjustment
-
Brakes
Front Brakes
Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange
Rear Brakes
Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
-
Wheels
Front Wheels
Alluminium alloy 3.50” x 17”
Rear Wheels
Alluminium alloy 5.50” x 17”
Front Tyres
120/70 - ZR 17 M/C (58 W)
Rear Tyres
180/55 - ZR 17 M/C (73 W)
5 based on votes
MV Agusta
£
16900.00
Available in Stock
