F3 RC Promotions


Model Description


RACING SPIRIT

The racing tradition reinterpreted.

RC.PERFORMANCE

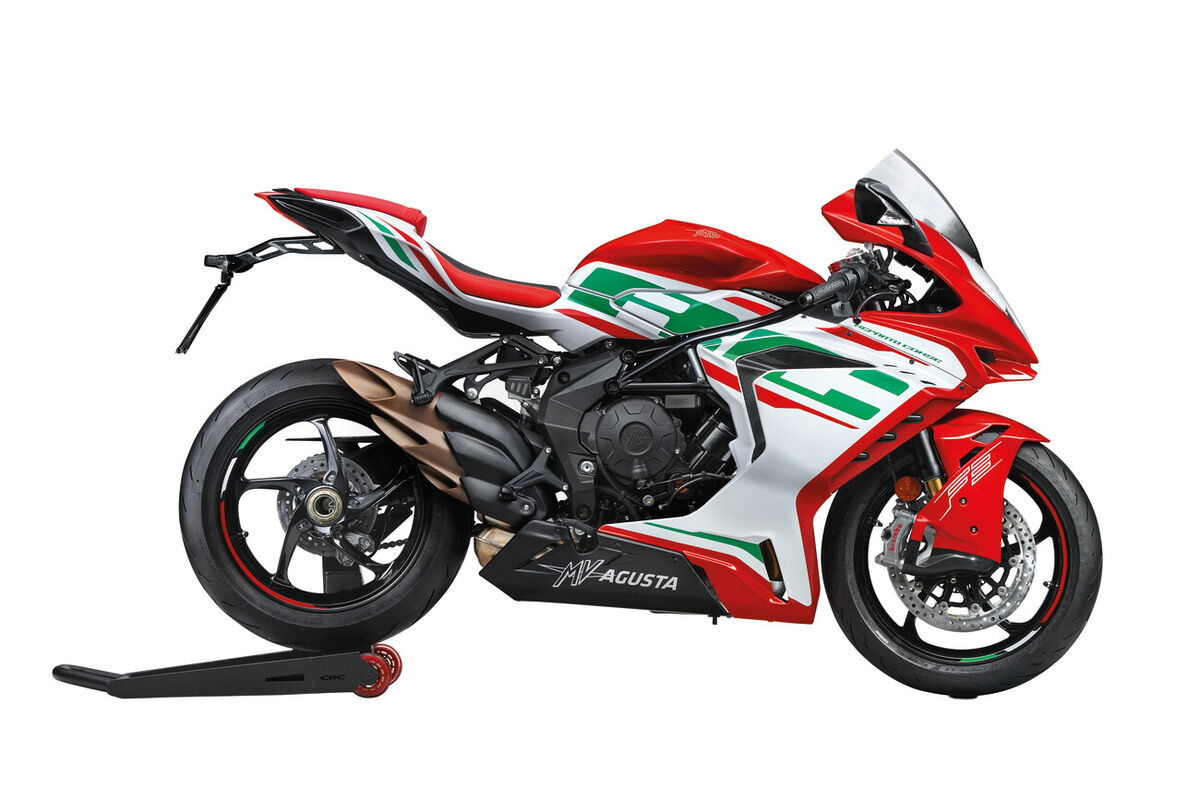

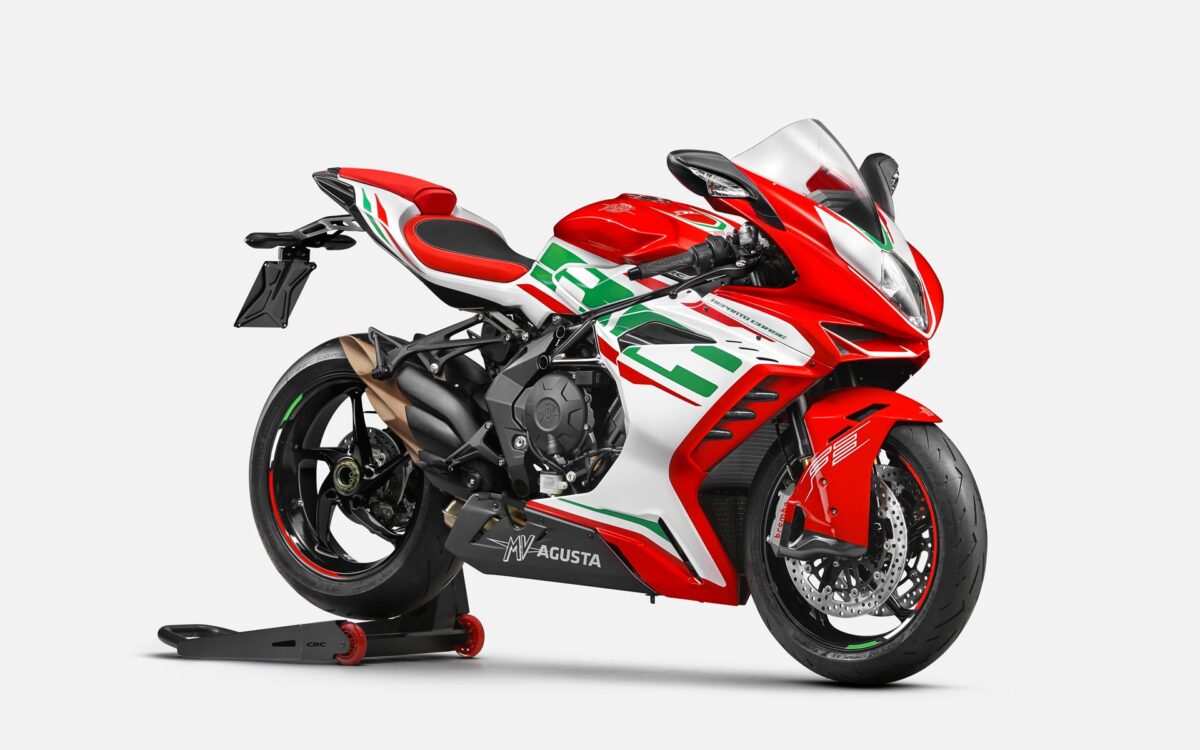

Imagine the very best Supersport there is. Envision it in the colours of the official MV Agusta teams. Open your eyes and climb aboard the F3 RC, the sportiest model in the Reparto Corse range. For maximum performance and enjoyment, on the road and on the track.

PURE MV AGUSTA SOUND

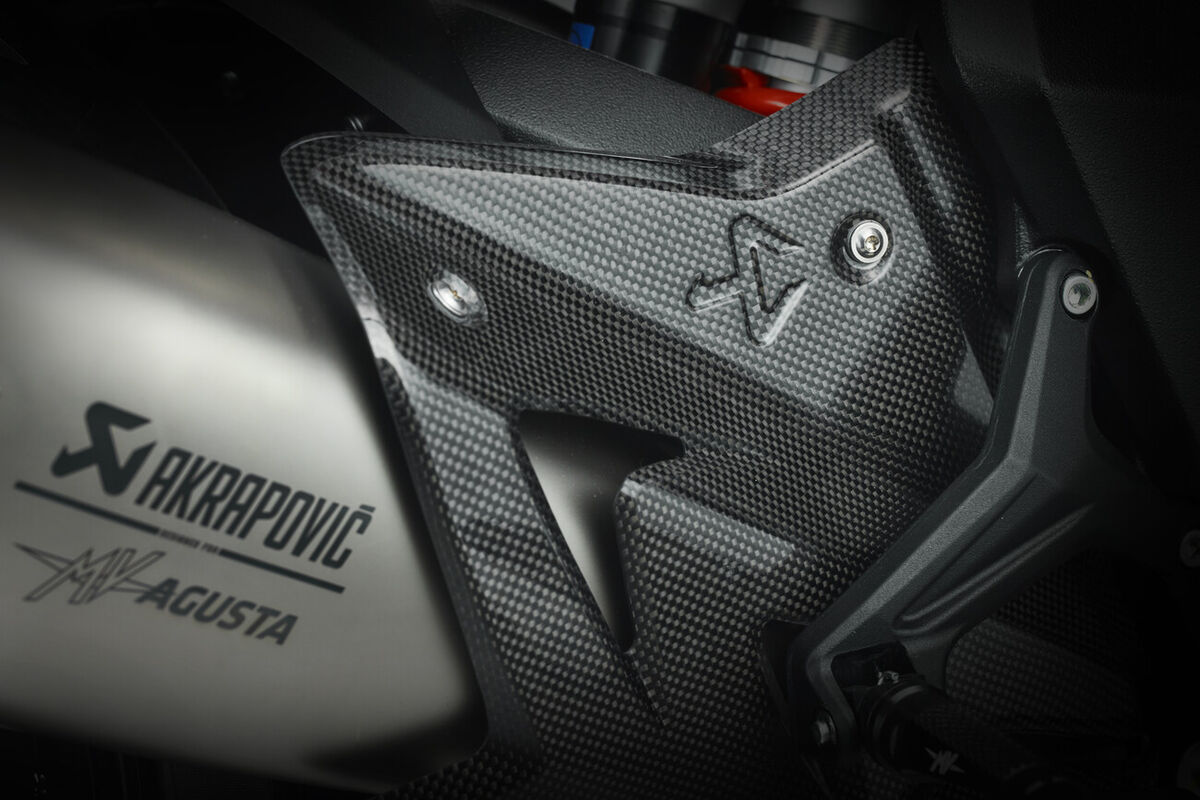

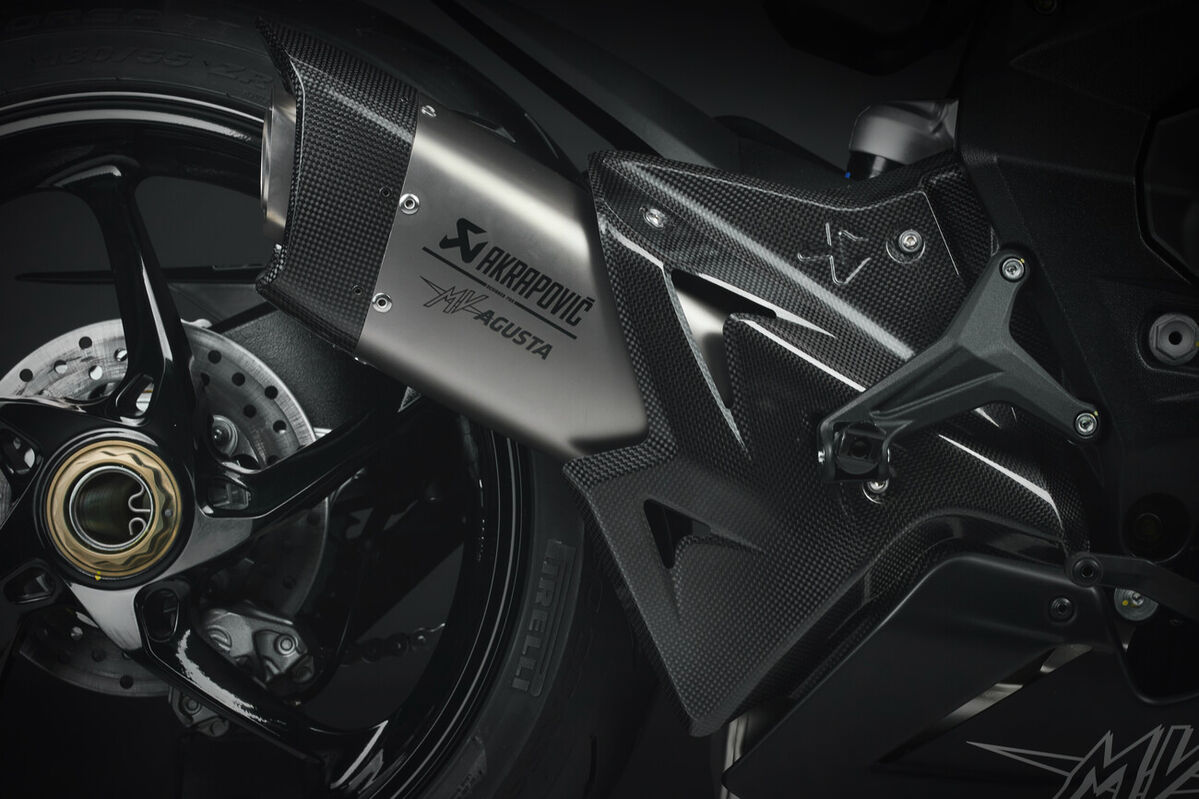

Beyond reducing friction, which is fundamental for achieving greater efficiency, the new F3 RC also boasts high-pressure injectors, a bi-directional flow radiator and a totally redesigned exhaust system. These new features only add to the project’s unique technology, which includes titanium valves and a counter-rotating crankshaft, guaranteeing that it is always “race-ready”.

THROTTLE IN HAND

Throttle management on a Supersport bike requires a direct connection between the control and the rear wheel, hence the introduction of brand new management algorithms in 2022. Also new are the handlebar controls to activate launch control, invaluable on track and fun on the road.

IN THE WIND TUNNEL

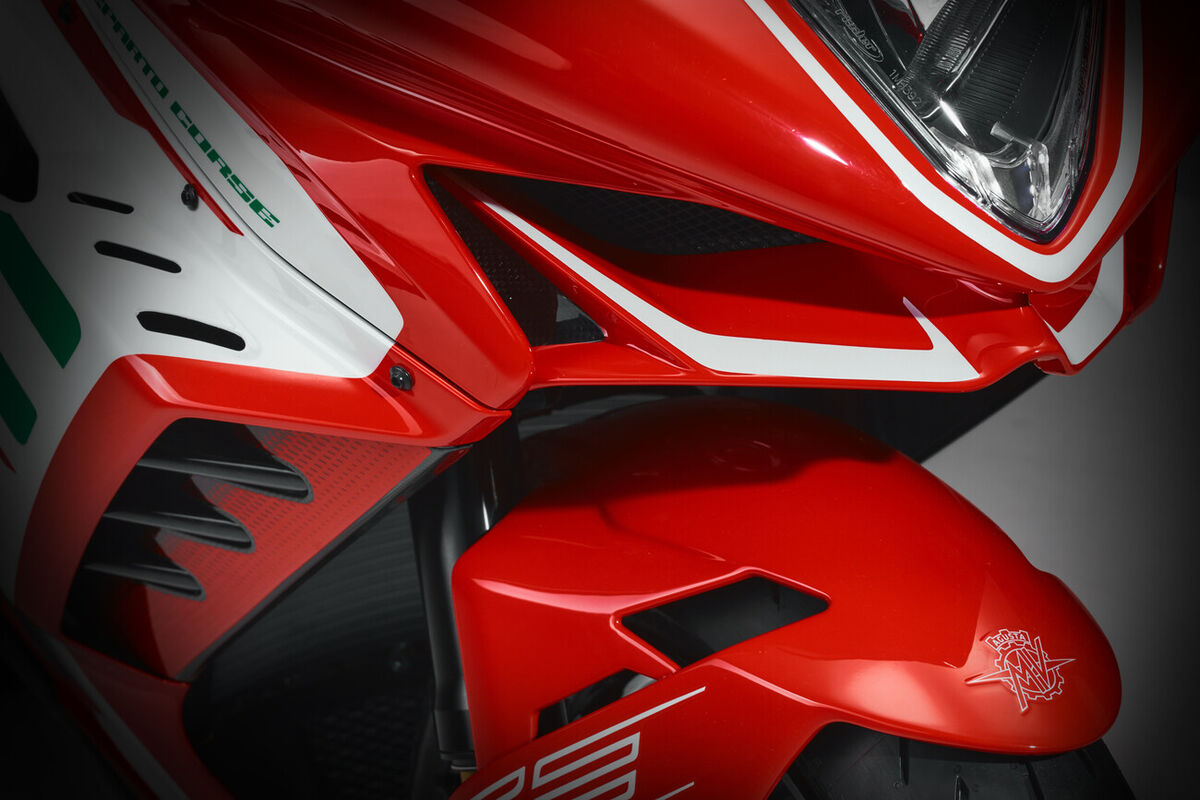

By incorporating aerodynamic wings into the design of the F3 RC, the result of wind tunnel experiments, MV Agusta doubles down on its efforts to find solutions that satisfy the brand’s extremely high aesthetic standards.

RACING SAFETY AND POWER

At the front, the Brembo braking system relies on four-piston callipers and 320-mm floating discs. The ABS is by Continental, with the compact MK100 providing Rear Wheel Lift-Up Mitigation (RLM) and the cornering function.

Finance Calculator

Model Specification


  • Engine

    Type

    Three cylinders, 4 stroke, 12 valves

    Engine

    Three cylinders, 4 stroke, 12 valves

    Timing

    “D.O.H.C” with mechanical chain tensioner and DLC tappet

    Displacement (cc)

    798 cm3 (48.7 cu. in.)

    Compression Ratio

    13.3:1

    Starting

    Electric

    Max Power

    112,5 kW (153 hp) at 13.250 r.p.m.**

    Max Torque

    88 Nm (8.97 kgm) at 10.600 r.p.m.

    Engine Management

    Integrated ignition

  • Dimensions

    Bore x Stroke

    79 mm x 54.3 mm (3.1 in. x 2.1 in.)

    Wheelbase

    1380 mm (54.33 in.)

    Length

    2030 mm (79.92 in.)

    Width

    730 mm (28.74 in.)

    SeatHeight

    830 mm (32.68 in.)

    Ground Clearance

    120 mm (4.72 in.)

    Trail

    99 mm (3.89 in.)

    Dry Weight

    173 kg (381.4 lbs.) - 165 kg (363.8 lbs.)**

  • Performance

    Cooling

    Cooling with separated liquid and oil radiators

    Clutch

    Wet, multi-disc slipper clutch

    Max Speed

    240.0 km/h (149.1 mph)

  • Transmission

    Gearbox

    Primary Drive

    22/41

  • Frame

    Tank Capacity

    16,5 l (4.36 U.S. gal.)

    Frame Type

    ALS Steel tubular trellis

    Rear Swing Arm

    Aluminium alloy

  • Suspension

    Front Suspension

    Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment

    Rear Suspension

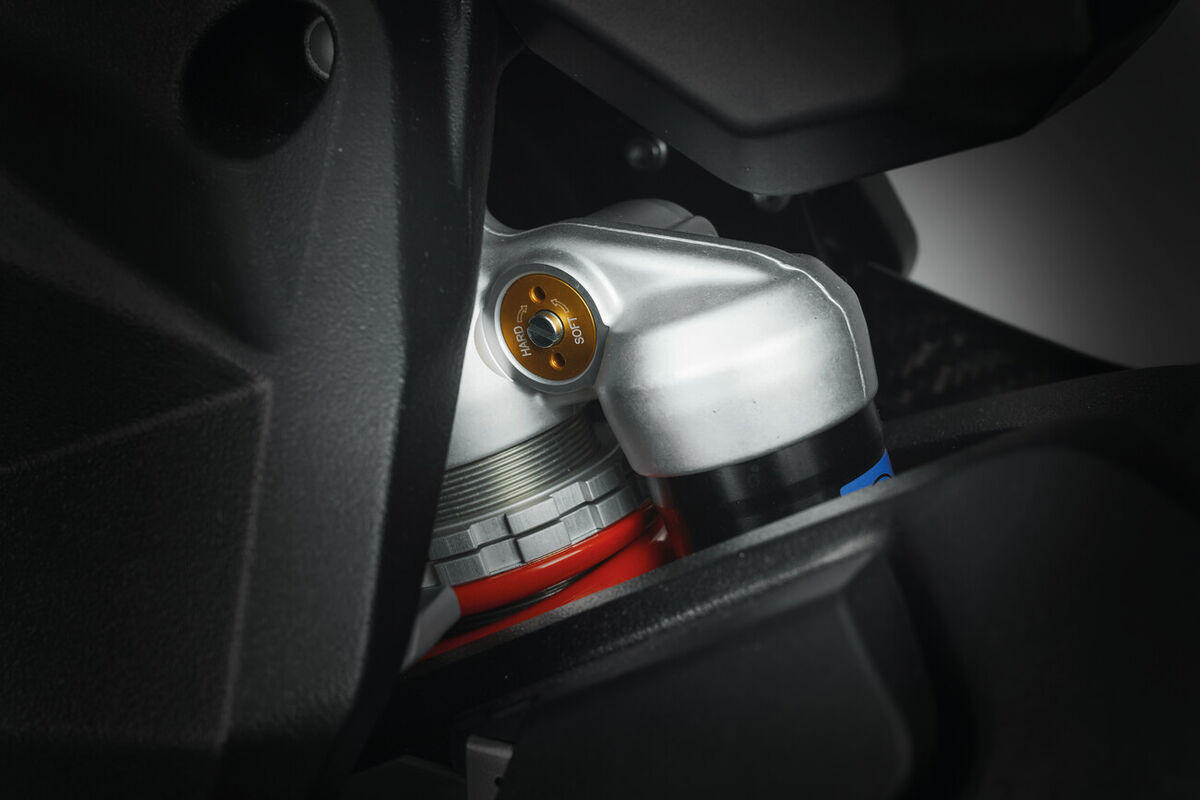

    Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment

  • Brakes

    Front Brakes

    Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange

    Rear Brakes

    Single steel disc with Ø 220 mm (Ø 8.66 in.) dia

  • Wheels

    Front Wheels

    Aluminium alloy 3.50 ” x 17 ”

    Rear Wheels

    Aluminium alloy 5.50 ” x 17 ”

    Front Tyres

    120/70 - ZR 17 M/C (58 W)

    Rear Tyres

    180/55 - ZR 17 M/C (73 W)
