Model Description


Demand the best

The previous model was a great bike, but not quite competitive enough for our liking. This has been the highest priority bike for our R&D team, and we have not held back. Every element of the old model has been iterated on and improved by an order of magnitude, from 58% more battery capacity, to 30% more power, to better handling and greatly improved suspension.

Designed for everywhere

Trials – The TXP-24 has been completely redesigned from the ground up. Every component has been meticulously built for the perfect ride. Increased Power. More Control. Better Response.

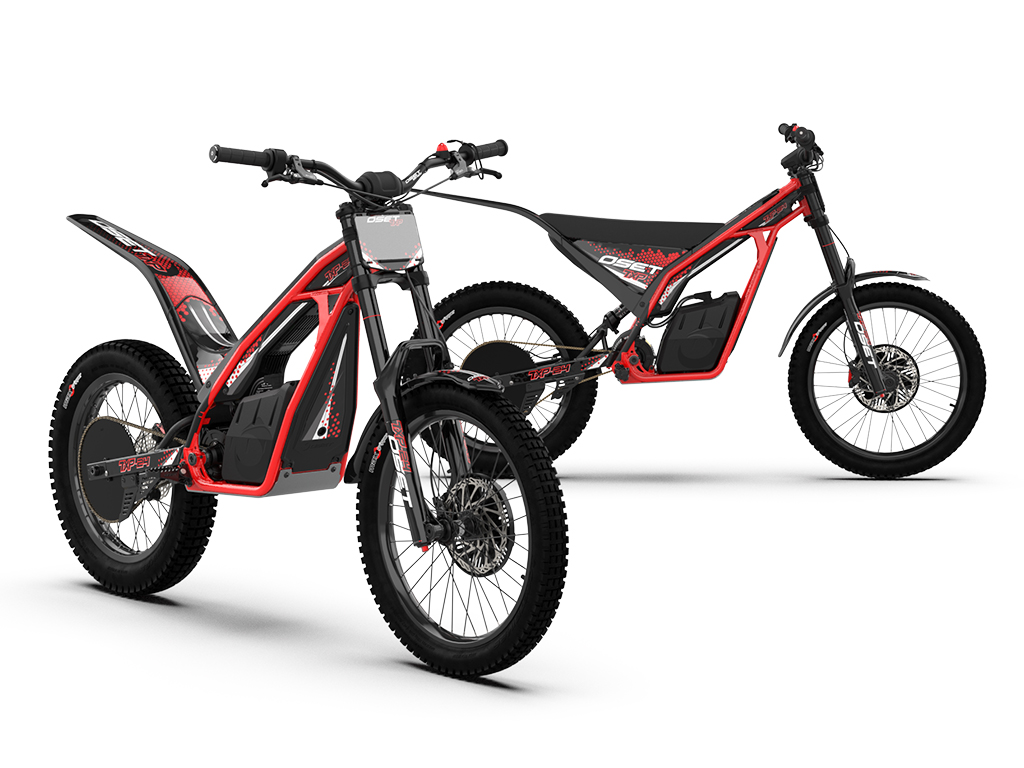

Xplore – With a seat included, you have a second bike ready to ride just for fun, take on muddy trails and relax on the custom designed padded seat unit. Power on and take a load off!

Play – The TXP-24 is all out for fun – the extra power and increased control via the custom controller provide better agility opening up new and exciting places to ride. Take it to the MAX!

Model Specification


  • Frame

    Wheelbase

    1220mm

    Seat Height

    Trials - 635mm or Xplore - 810mm

    Ground Clearance

    305mm

    Swingarm

    Steel with integrated chain tensioners and chain guide

  • Wheels

    Wheels

  • Suspension

    Suspension

    Front - 160mm air sprung, with rebound, compression & volume adjustment. Rear - 160mm air sprung, with rebound & volume adjustment.

  • Brakes

    Brakes

    Four piston hydraulic disc, 200/180mm rotors and front rotor guard.

  • Engine

    Motor

    1600W 52v OSET BLDC with position encoder.

    Batteries

    Sealed, 52v 28Ah lithium battery with LED status indicator.

    Charger

  • Performance

    Age Range

    Throttle

    Dual sensing twist type.

  • Dimensions

    Rider Weight Limit

    90kg

    Front Peg Height

    355mm

    Handlebar Height

    1080mm

    Weight

    Trials - 48.1kg or Xplore and Play - 49.6kg
