Model Description

The beauty of work.

Powered by Yamaha’s well-proven, high torque MK II 686cc engine and featuring a compact chassis with a plush seat for day-long riding comfort, this extraordinary worker can carry a 140 kg payload plus rider – and tow up to 600 kg.

The smooth-running Ultramatic® CVT transmission and 2WD/4WD system with Diff-lock make this ATV ideal for towing, and the Electric Power Steering makes every working day that little bit easier.

Designed for farmers, foresters and industrial users who need a tough utility vehicle for hard work in extreme conditions, the user-friendly Kodiak 700 EPS SE delivers superior performance – it’s made for all of you who are #DRIVENBYRESULTS.

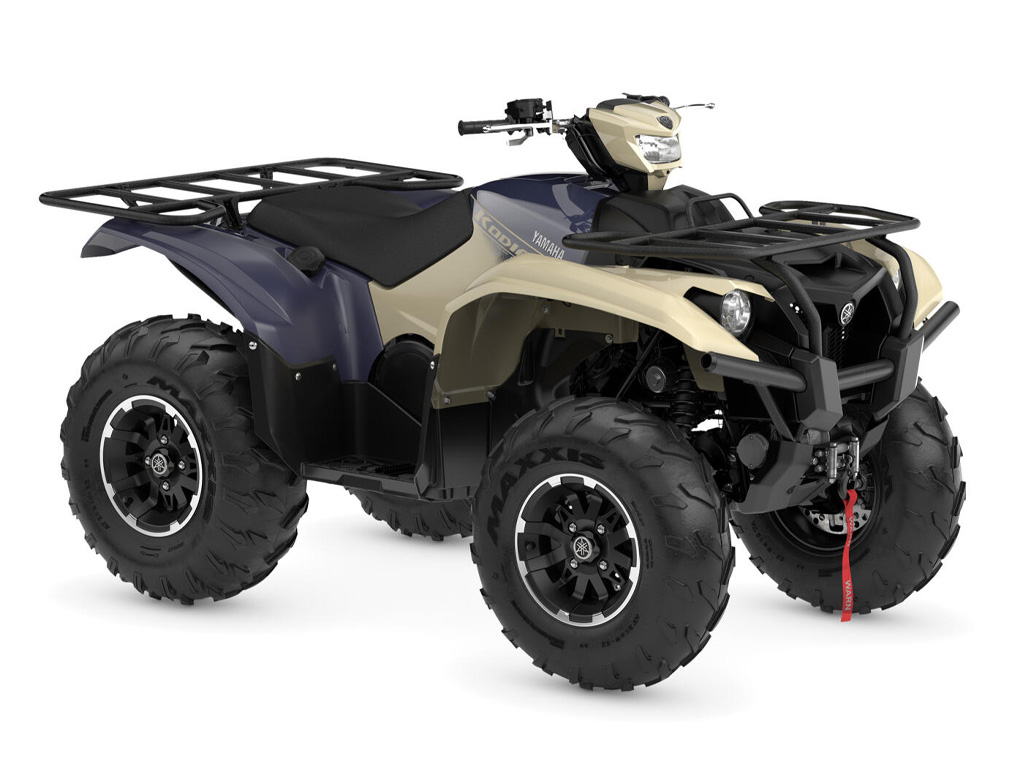

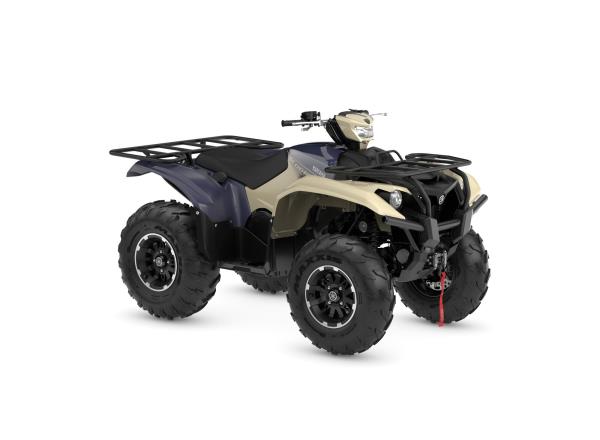

Desert Tan/Midnight Blue


  • Pro utility ATV with a luxury twist
  • High-torque engine with powerful 686cc SOHC 4-stroke
  • The most durable ATV transmission on the market
  • On the Fly Driver selectable wheel drive system
  • Large cooling capacity for work and towing
  • Professional capacity to stow and tow cargo
  • Self & Buddy rescue with standard winch
  • Low maintenance hybrid stopping power
  • Comfortable and terrain capable suspension
  • Less fatigue and more precise handling with EPS
  • SE two-tone painted body & aluminium wheels

Finance Calculator

New bike finance is calculated off the models paint colour or finish, please select your desired colour below to return a more accurate finance quote.

Model Specification

  • Engine

    Engine Type

    Single cylinder, 4-stroke, liquid-cooled, DOHC, 4-valves

    Fuel System

    Electronic Fuel Injection

    Starter System




    Bore x stroke

    102.0 mm x 84.0 mm

    Compression Ratio

    10.0 : 1

    Lubrication System

    Wet sump

    Ignition System


    Drive system

    On-Command® 2WD, 4WD, 4WD with Diff-lock

    Final transmission


  • Frame

    Front suspension system

    Independent double wishbone, 180 mm stroke, 5 position preload adjustment

    Rear suspension system

    Independent double wishbone, 230 mm stroke, 5 position preload adjustment

    Front brake

    Dual ventilated hydraulic disc

    Rear brake

    Multi-disc wet rear brake in rear gearcase

    Front tyres

    Maxxix MU19 AT25x8-12, E marked, aluminum wheels

    Rear tyres

    Maxxix MU19, AT25x10-12, E marked, aluminum wheels

  • Dimensions

    Overall length

    2,070 mm

    Overall width

    1,180 mm

    Overall height

    1,240 mm

    Seat height

    860 mm


    1,250 mm

    Minimum ground clearance

    275 mm

    Min. turning radius


    Fuel tank capacity

    18.0 litres

    Oil tank capacity

    2.6 litres

  • Performance

    Front rack


    Rear rack


  • Wheels

    Steering system

    Ackermann-type with Electronic Power Steering
