Model Description

The extraordinary ordinary work

Powered by the new high torque MK II 686cc engine – and featuring a compact chassis with a plush seat for day-long riding comfort – this extraordinary worker can carry a 140kg payload plus rider, and tow up to 600kg.

The smooth-running Ultramatic® CVT transmission and 2WD/4WD mechanical system make this ATV ideal for towing and all day work.

Designed for farmers, foresters and industrial users who need a tough utility vehicle for hard work in extreme conditions, the user-friendly Kodiak 700 delivers superior performance with outstanding value.

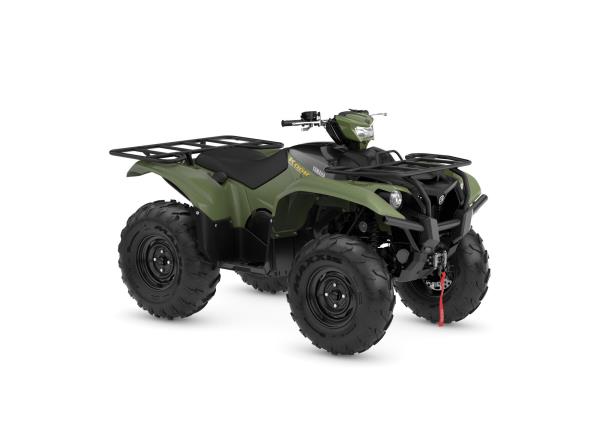

Olive Green


  • Full spec professional utility ATV
  • Powerful 686cc SOHC 4-stroke high-torque engine
  • The most durable ATV transmission on the market
  • On the Fly Driver selectable wheel drive system
  • Large cooling capacity for work and towing
  • Professional capacity to stow or tow cargo
  • Self & Buddy rescue with standard winch
  • Low maintenance hybrid stopping power
  • Comfortable and terrain capable suspension
  • Less fatigue and more precise handling by EPS
  • Yamaha quality with high reliability

Finance Calculator

New bike finance is calculated off the models paint colour or finish, please select your desired colour below to return a more accurate finance quote.

Model Specification

  • Engine

    Engine Type

    Single cylinder, 4-stroke, liquid-cooled, DOHC, 4-valves

    Fuel System

    Electronic Fuel Injection

    Starter System




    Bore x stroke

    102.0 mm x 84.0 mm

    Compression Ratio

    10.1 : 1

    Lubrication System

    Wet sump

    Ignition System


    Drive system

    On-Command® 2WD, 4WD, 4WD with Diff-lock

    Final transmission


  • Frame

    Front suspension system

    Independent double wishbone, 180 mm stroke, 5 position preload adjustment

    Rear suspension system

    Independent double wishbone, 230 mm stroke, 5 position preload adjustment

    Front brake

    Dual ventilated hydraulic disc

    Rear brake

    Multi-disc wet rear brake in rear gearcase

    Front tyres

    Maxxis MU19 AT25x8-12, E marked / steel wheels

    Rear tyres

    Maxxis MU19, AT25x10-12, E Marked / steel wheels

  • Dimensions

    Overall length

    2,070 mm

    Overall width

    1,180 mm

    Overall height

    1,240 mm

    Seat height

    860 mm


    1,250 mm

    Minimum ground clearance

    275 mm

    Min. turning radius


    Fuel tank capacity

    18.0 litres

    Oil tank capacity


  • Performance

    Front rack


    Rear rack


  • Wheels

    Steering system
